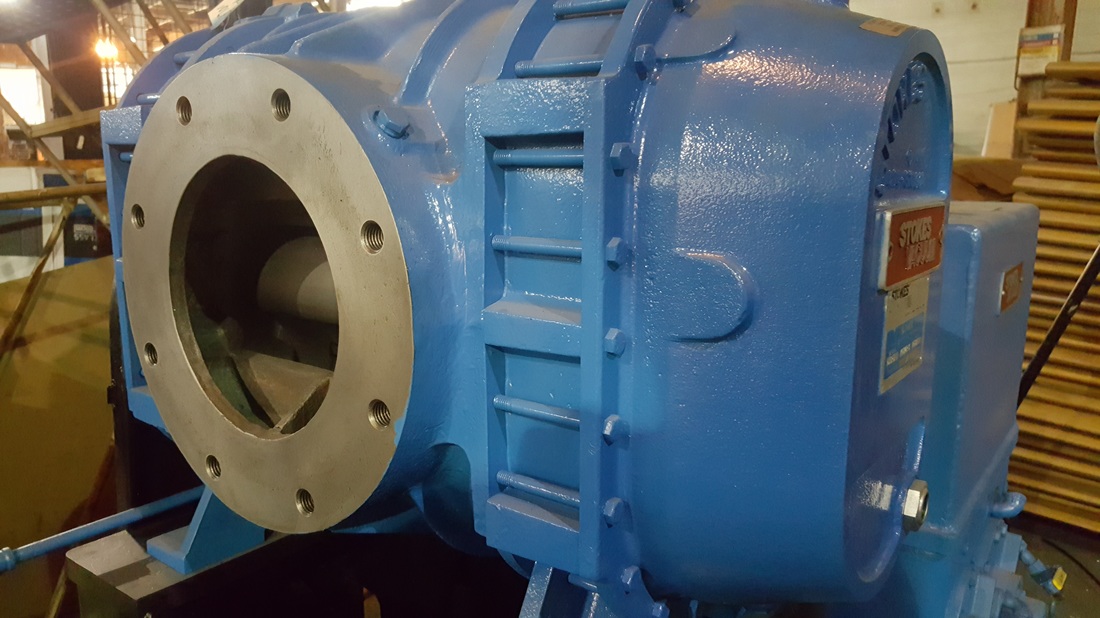

stokes 615 roots vacuum blower
Rebuilt With:
* Testing to verify performance including:
1.Disassembly and cleaning in a hot caustic bath. 2.Dimensional verification of all internal moving components to assure they are within manufacturer’s tolerances. 3.Reassembly with non-wear components that replace those found to be out of tolerance. 4.Reassembly with new wear components including bearings, shaft seals, o-rings, gaskets. 5.Motor evaluation to confirm bearings are fit for service and lubricated. 6.Helium Leak Detector testing to verify vacuum leak free assembly 7.Water Jacket Pressure Test to verify leak free water jacket where applicable. 8. Oil Reservoir Pressure Test to verify leak free oil reservoir 9. 24 Hour Test Run to verify blank-off performance and confirm oil-leak free operation. 10. Amp Draw Test to verify correct blank –off and loaded Amp Draw. This can be used to diagnose future performance issues. shippingShipping weight as crated: 650 lbs
Shipping dimensions as crated: 40 x 24 x 30H |
Stokes 615
|
LIST PRICE: $10,900
*Discounts Available with Trade-Ins - CALL FOR DETAILS AND STOCK AVAILABILITY OPTIONS:
Trade-ins Welcome
SPECIFICATIONS
V belt (2750 rpm)3375m3h-1 / 2000ft3min-1 Direct drive (3000 rpm)3685m3h-1 / 2170ft3min-1 Direct drive (3600 rpm)4420m3h-1 / 2600ft3min-1 Inlet/outlet flanges 8” ASA/ANSI flange Motor power US TEFC15hp needed. Oil capacity (horizontal flow)1.9 litre / 0.51gal Oil capacity (vertical flow)4.1 litre / 1.1gal Max pressure differential506mbar / 380Torr Max temp rise135°C / 275°F Max discharge temp191°C / 375°F Weight bare shaft234kg / 515lbs Weight TEFC direct drive397kg / 875lbs |
